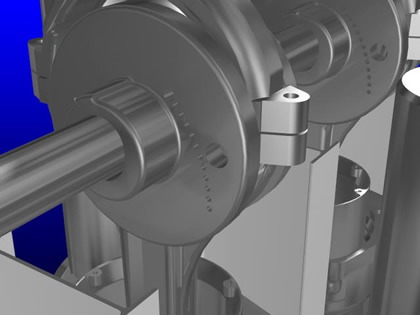

Close-up of the plunger in the rendered 3D model of the 801-H duplex plunger pump.
A test rendering demonstrating how to access the plunger for servicing.
Movie opens in a popup window (~3.9MB).

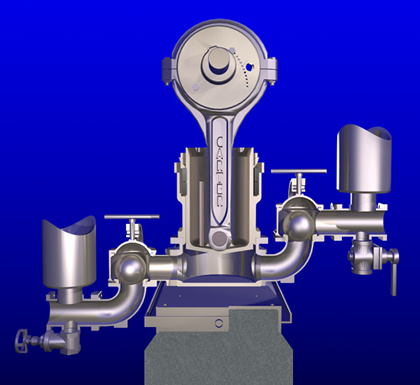

A rendered cross-section of the 801-H duplex plunger pump model used in the brochure.
A test rendering of the plunger in action.
Movie opens in a popup window (~980KB).

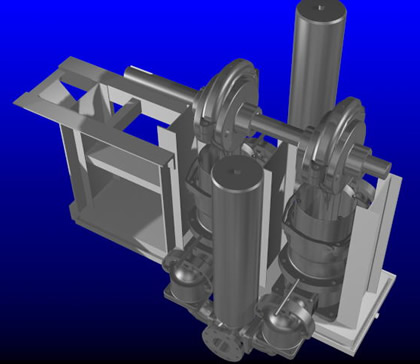

Rendered isometric view of the entire 801-H duplex plunger pump model.
Animation similar to the one used in the final deliverable.
Movie opens in a popup window (~2.9MB).
Carter Pump needed a corporate video and brochure for use in trade shows and as marketing collateral.
We handled all aspects of producing the video, which highlighted the construction and features of the Carter Pump 801-H duplex plunger pump.
Responsibilities ranged from writing the script to location shots to 3D computer animations to post-production.
We also created a computer-rendered cross-section of the pump that formed the centerpiece of a full-color brochure and provided unique insight into the the pump's features and options.
Disciplines/Skills Engineering; video production, editing, & post-production; 3D modeling; 3D animation; spatial visualization.
